Deep Tissue Oxygenation Monitor

#moorVMS-NIRS

Advanced, deep near infrared spectroscopy monitoring

It goes without saying that the company's imaging technology itself is superb!

Gourav Banerjee
Leeds Beckett University
In a nutshell, moorFLPI-2 is the most user-friendly system for studying cerebral blood flow regulation in rodents.

Chia-Yi (Alex) Kuan, MD, PhD
Emory University School of Medicine
Moor Instruments have consistently provided excellent help and support for my research.

Kim Gooding, PhD
University of Exeter Medical School
I cannot rate the company or the staff highly enough.

Jim House, PhD
University of Portsmouth
We can't recommend Moor instruments highly enough. The technology is at the cutting edge and the support second to none.

Paul Sumners, PhD
London South Bank University
I expect to be using Moor Instrument’s technology for many years to come!

Faisel Khan, PhD
Ninewells Hospital & Medical School
We have found Moor equipment to be extremely dependable and innovative.

Dean L. Kellogg, Jr., MD, Ph.D
University of Texas Health Science Center
Laser Doppler Imager is a standard accurate method we now use in our cerebral blood flow and brain perfusion in our laboratory.

Momoh A. Yakubu, PhD
Texas Southern University

Download Brochure

NOTE: This product and its accessories are not for sale for use within the EU and UK. Please contact the sales team for information regarding non-medical alternative products.

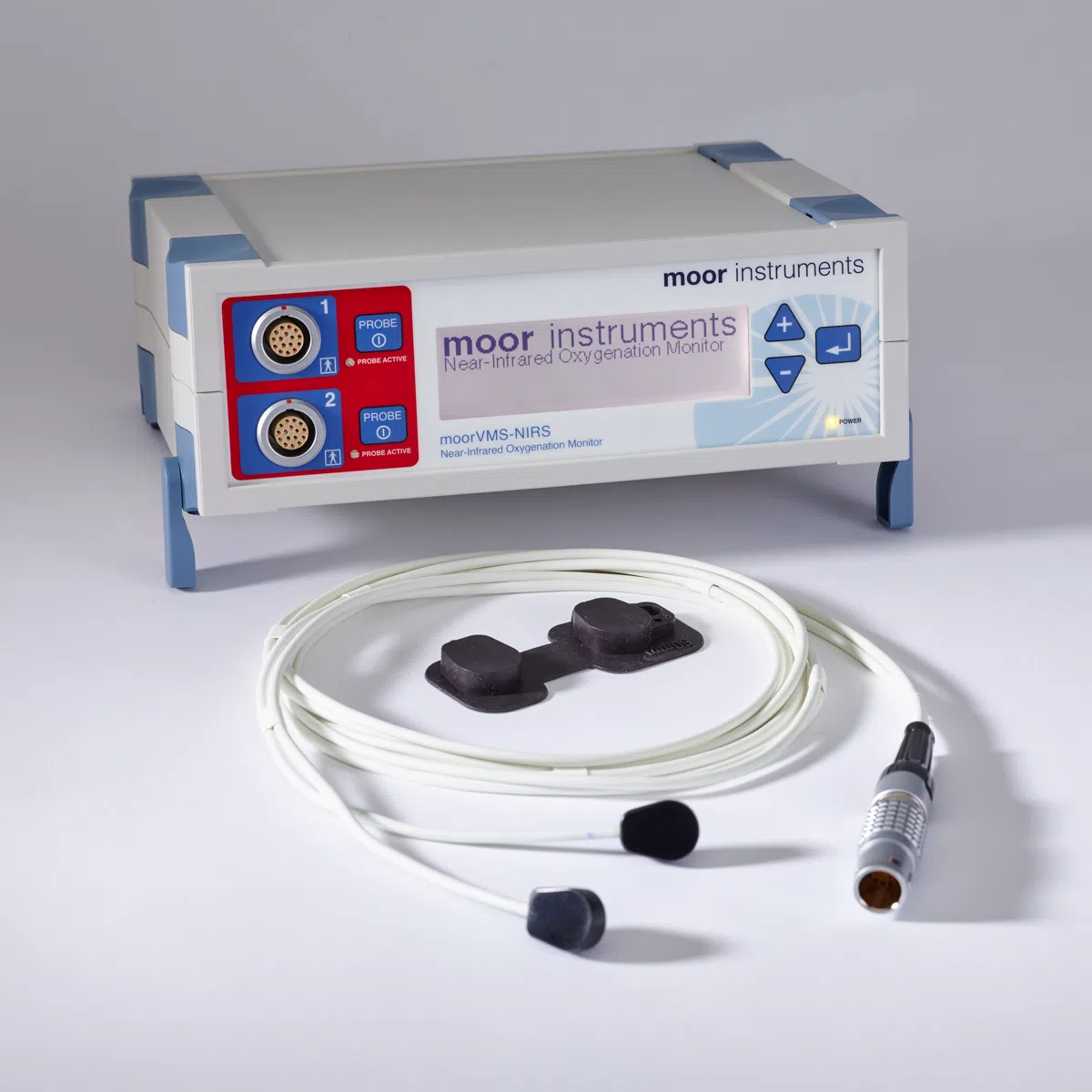

The moorVMS-NIRS near infrared spectroscopy monitor is designed to assess oxygenation status in deeper tissues non-invasively, muscle and brain for example.

The moorVMS-NIRS features include;

Dual channel module: allowing you to assess and compare two sites simultaneously.
Compatibility with existing moorVMS family products and software: combine modules for a multichannel system to your own specification.
Three probe holders: 30, 40 and 50mm separation offering sampling from three different tissue beds.
Add laser Doppler flowmetry (moorVMS-LDF) or white light spectroscopy (moorVMS-OXY) measurements: with provision for probes within the NIRS probe holders.
Easy viewing: High contrast, ice white, backlit display.
Advanced Windows™ compatible moorVMS-PC software: with extensive analytical features, batch processing and report templates.
Highly connectable: As well as the visual output, all monitors feature analogue outputs (0-5V) and digital (USB) real time data transfer.
Factory calibrated: no need for probe pre-calibration.
Medical grade design: for clinical research applications.
Multi-lingual training DVD: for continual reference.
Reliability: 3 year manufacturers warranty as standard – no servicing requirement. Annual service plans extend the warranty to 5 years.

The following products are AVAILABLE TO BUY ONLINE and work with the moorVMS-NIRS

LEAD-BNC-BNC-2M

BNC Cable

Add to quote

LEAD-USB-AB-2M

USB Cable

Add to quote

MOORVMS-NIRS-CAL

Calibration checking block for moorVMS-NIRS

Add to quote

NPH1-30

Pack of probe holders used with NP1 to achieve 30mm emiter/ detector separation

Add to quote

NPH1-40

Pack of probe holders used with NP1 to achieve 40mm emiter/ detector separation

Add to quote

NPH1-50

Pack of probe holders used with NP1 to achieve 50mm emiter/ detector separation

Add to quote

PAD-NIRS30

Adhesive pads used to secure the NPH1-30 probe holders to the skin

Add to quote

PAD-NIRS40

Adhesive pads used to secure the NPH1-40 probe holders to the skin

Add to quote

PAD-NIRS50

Adhesive pads used to secure the NPH1-50 probe holders to the skin

Add to quote

TRANSFORMER-REO-MED300-SW

Add to quote

This section lists the more common questions our customers have with regards to the moorVMS-NIRS. If you have a question you would like answered that does not appear below then please email us. We are happy to help!

Q. Can the moorVMS-NIRS be used to study muscle oxygenation during exercise?
A. Yes, refer to the link here for a poster titled “Analysis Of Muscle Oxygenation Parameters During Cycling”.

Q. What parameters does the moorVMS-NIRS monitor measure?
A. The moorVMS-NIRS monitor measures absolute tissue haemoglobin concentration (oxyHb, deoxyHb and totalHb), oxygen saturation (SO₂), non-invasively and in deeper tissues such as muscle and cerebral tissue.

Q. Why is it important to measure tissue oxygen saturation and total haemoglobin?
A. NIRS offers the possibility to sample oxygenated haemoglobin in deeper tissues such as muscle and cerebral tissue. The information can be used for clinical research applications in critical care and exercise science for example. Oxygen saturation is a most crucial parameter for the assessment of the oxygen supply of tissue.

Q. What is the measurement principle used by moorVMS-NIRS?
A. The moorVMS-NIRS is based on the theory of near infrared spectroscopy. It measures the absorption characteristics of the sampled tissue for near infrared light which is predominantly determined by haemoglobin.

Q. How is moorVMS-NIRS tissue oxygen saturation different from other measures of oxygenation (SpO₂, VLS, tcpO₂)?
A. The moorVMS-NIRS tissue oxygen measurement using near-infrared spectroscopy (NIRS) is also a measure of the local haemoglobin saturation at the measurement site. The difference lies in the light source, wavelength range (visible region or near infrared region) and algorithms for the derivation of the tissue oxygen saturation. NIRS has been primarily developed to monitor deeper tissues such as muscle and brain while moorVMS-OXY, based on the visible light spectroscopy (VLS) measures oxygen saturation in the superficial layer of the tissue. Both moorVMS-NIRS and moorVMS-OXY are sensitive to the microcirculation, i.e. measure within the smaller blood vessels rather than arteries or larger veins.

VLS:

VLS is a measure of the percent haemoglobin oxygen saturation in the capillaries and venous area of the tissue microcirculation and therefore reflects changes in the local conditions of supply and consumption in the tissue. Tissue oxygen saturation is generally lower than arterial oxygen saturation (SaO₂) and pulse oximetry saturation (SpO₂), and is more close to venous oxygen saturation (SvO₂).

SpO₂:

SpO₂ is measured with a pulse oximeter, is the most widely used measure of haemoglobin oxygen saturation. The primary difference is that SpO₂ relies on the difference in path length during the pulse cycle to calculate oxygen saturation so that it only measures arterial oxygen saturation. This gives a good indication of lung and heart function, but it gives no information about tissue oxygenation and oxygen uptake by organs as SO₂, measured with moorVMS-NIRS. In addition, because a pulse oximeter is dependent on detecting the pulse of haemoglobin in the artery, SpO₂ requires a pulsatile flow while SO₂ readings do not.

tcpO₂:

tcpO₂ is transcutaneous measurement of the oxygen partial pressure. It uses an electrode to heat the underlying tissue to create a local hyperaemia. This means that the transcutaneous measurement values represent the maximum capacity of the vascular bed and tissue to deliver oxygen and transport carbon dioxide away. Therefore, tcpO₂ value is close to arterial oxygen saturation and is not a measure of tissue oxygen saturation at normal condition as measured by moorVMS-NIRS. The tcpO₂ method requires heating the skin tissue to 40°C or higher in order to make a measurement, so it takes several minutes to have the first reading and is not suitable for long-term monitoring. In comparison, moorVMS-NIRS is a non-invasive, much quick and convenient method for tissue oxygenation measurement. Also, due to the relative large electrode size, tcpO₂ cannot be used for measuring oxygen of the internal tissue and in combination with laser Doppler monitor for blood flow measurement at the same site.

Q. What is the measurement depth of moorVMS-NIRS?
A. The actual sampling depth depends on the probe holder used and the separation (30, 40 or 50mm) and tissue characteristics. In general, the probe with wider separation between delivery and collecting fibres has deeper measurement depth. Physical models predict that the measurement depths range from below 10 to more than 20 mm, with a mean depth of about 10 – 15 mm For SO₂ the sensitivity to the upper tissue layer (about first 2 mm), i.e. skin, is suppressed.

Q. What is the fastest acquisition rate for moorVMS-NIRS?
A. The moorVMS-NIRS is capable of taking measurements with a rate up to 5 Hz, with system output at 40 Hz to ensure compatibility with VMS-PC software packages.

Q. How does skin pigmentation (melanin) affect moorVMS-NIRS measurement?
A. As for any device based on reflectance spectroscopy, very strong skin pigmentation might compromise its performance. In such extreme cases, a warning message will be displayed and it is suggested to try a probe holder with reduced separation. The reading of SO₂ itself is to a large extent independent of melanin content in the skin. (reason: there is no integration time setting, the only way to overcome high absorption is by reducing probe separation. If the measurement fails with 30mm separation then measurement will not be possible).

Q. Are there normal / standard values for tissue oxygen saturation?
A. Tissue oxygen saturation is generally lower than arterial oxygen saturation (SaO₂) and is more close to venous oxygen saturation (SvO₂). Measurement values depend on target tissue site, skin temperature, patient conditions and oxygen supply and extraction in general. For tissue of large muscle, normal values are in the range of 65 – 80 %, while it might have values of below 40 % or even 30 % during heavy exercise or hypoxic conditions. Other tissue types, like adipose tissue, might have low SO₂ values during normal conditions.

Q. How do I choose which probe holder to use?
A. The moorVMS-NIRS is supplied with three probe holders with 30, 40 and 50 mm separation. The measurement depth will be deepest with the wider separation, and the sample volume larger. Please consult our sale engineers for more details. We are also happy to discuss any special probe designs or modifications to standard.

Q. Do I need to calibrate the moorVMS-NIRS probe before use?
A. No. The moorVMS-NIRS is factory calibrated for each type of probe during manufacture.

Q. Does probe pressure affect the readings?
A. Yes. High probe pressure will press blood out of the tissue and therefore reduce SO₂ and totalHb on skin and deeper tissues. So changes in SO₂ and totalHb are not errors in the instruments or the method but rather an artefact due to real changes in the sample volume. All the moorVMS-NIRS skin probes are supplied with probe holders and adhesive discs, which will hold the probe on skin firmly with neutral contact pressure.

Q. Is it possible to save the absorption data and measurements for post-analysis?
A. Yes. The absorption data (raw and reference) and haemoglobin parameters can be continuously saved for post measurement analysis in a text file format using moorVMS-PC software.

Q. Is it possible to measure tissue oxygenation and blood flow simultaneously?
A. Yes. The moorVMS-NIRS can be used with the moorVMS-LDF laser Doppler monitor and/or moorVMS-OXY to simultaneously measure SO₂ from deep tissue as well as SO₂, blood flow and temperature from superficial tissue layers simultaneously. Dedicated probe ports are provided on the VMS-NIRS holders.

Q. Can I use moorVMS-NIRS with other protocol modules?
A. Yes. The moorVMS-NIRS forms a modular system when used in combination with the LDF monitor, Skin heater, Iontophoresis controller and Pressure controller. When used in this way, the instruments will be controlled and monitored via USB using the moorVMS-PC software. The moorVMS–DAQ is also available to integrate 8 channels of other physiological / analogue data from other systems found in the laboratory or clinic.

Q. Does the technique cause any local heating effects or tissue damage?
A. No. The moorVMS-NIRS is a non-invasive device hence causing no damage to target tissues. The light induced heating from the probe tip is negligible. Therefore, moorVMS-NIRS is suitable for long term monitoring.

There are numerous references where our tissue oxygenation monitors are cited. The list below is a small selection. Please contact us for reference lists on your chosen subject.

Yunus A Abdulhameed, Peter V E McClintock, Aneta Stefanovska (2020).
Race-specific differences in the phase coherence between blood flow and oxygenation: A simultaneous NIRS, white light spectroscopy and LDF study.
J Biophotonics. 2020 Apr;13(4):e201960131.
Weblink

Nils Freitag, Tim Böttrich, Pia D Weber, Giorgio Manferdelli, Daniel A Bizjak, Marijke Grau, Tanja C Sanders, Wilhelm Bloch, Moritz Schumann (2020).
Acute Low-Dose Hyperoxia during a Single Bout of High-Intensity Interval Exercise Does Not Affect Red Blood Cell Deformability and Muscle Oxygenation in Trained Men-A Randomized Crossover Study.
Sports (Basel). 2020 Jan 4;8(1):4.
Weblink

Samuel L Halley, Paul Marshall, Jason C Siegler (2019).
Effect of ischemic preconditioning and changing inspired O 2 fractions on neuromuscular function during intense exercise.
J Appl Physiol (1985). 2019 Dec 1;127(6):1688-1697.
Weblink

Jonathan S. Helfgott (2020).
Validating the use of spatially resolved spectroscopy to demonstrate improvement of cerebral blood flow following external counterpulsation treatment in patients with mild cognitive impairment or Alzheimer’s disease.
Alzheimer's and Dementia 2020;16(S2)
Weblink

Tjaša Kermavnar, Kevin J. O'Sullivan, Vincent Casey, Adam de Eyto, Leonard W.O'Sullivan (2020).
Circumferential tissue compression at the lower limb during walking, and its effect on discomfort, pain and tissue oxygenation: Application to soft exoskeleton design.
Applied Ergonomics Volume 86, July 2020, 103093.
Weblink

Tjasa Kermavnar, Kevin J O'Sullivan, Adam de Eyto, Leonard W O'Sullivan (2020).
Discomfort/Pain and Tissue Oxygenation at the Lower Limb During Circumferential Compression: Application to Soft Exoskeleton Design.
Hum Factors. 2020 May;62(3):475-488.
Weblink

Emily Kate Ellis Metcalf (2018).
Sex-Based Differences in the Response of Resistance-Trained Male and Female Athletes to Resistance Exercise.
Thesis; 2018; Western Sydney University
Weblink

Moritz Schumann, Holger Schulz, Anthony C Hackney, Wilhelm Bloch (2017).
Feasibility of high-intensity interval training with hyperoxia vs. intermittent hyperoxia and hypoxia in cancer patients undergoing chemotherapy - Study protocol of a randomized controlled trial.
Contemp Clin Trials Commun. 2017 Nov 6;8:213-217.
Weblink

Moor Instruments are committed to product development. We reserve the right to change the specifications below without notice.

MEASUREMENT PARAMETERS

SO₂ (tissue oxygen saturation)

Range: 0-99%
Accuracy: ± 2 SO₂ units
Precision: ± 3% of measured value
Resolution: 1 SO₂ unit

oxyHb (relative oxygenated haemoglobin concentration)

Range: 0-1000 AU
Accuracy: ±10%
Precision: ± 3% of measured value
Resolution: 0.1 AU

deoxyHb (relative deoxygenated haemoglobin concentration)

Range: 0-1000 AU
Accuracy: ± 10%
Precision: ± 3% of measured value
Resolution: 0.1 AU

Sampling rate (all parameters) 5 Hz
Output data rate to PC 40 Hz

MEASUREMENT PRINCIPLE

Spatially Resolved Spectroscopy (SRS)
modified Lambert-Beer (mLB)

OUTPUTS

LCD screen providing display of oxygen saturation SO₂.
USB interface for connection to PC.
Analogue outputs: BNC sockets, 0-5V.
2 x SO₂, 2 x AUX
All outputs have independent user selectable scaling.

GENERAL

Power source: Universal voltage, 100-230V AC, 15VA, 50 to 60Hz.
Dimensions: W x H x D mm
moorVMS-NIRS 235 x 80 x 200
Weight 1.3kgs
Operating environment: Clinic or laboratory, excluding domestic.
Operating temperature: 15-30ºC.

Moor Instruments manufacture a wide range of probes designed to help you assess flow from almost any tissue. We are more than happy to advise on your particular application but hope too that the following general notes are useful.

Just plug in to start monitoring! Three probe holders are available with dedicated double sided adhesive pads offering separation of 30, 40 and 50mm between emitting and detecting heads.

This alters the measurement depth with a wider separation offering deeper penetration.

Access ports are also provided enabling you to add laser Doppler (moorVMS-LDF) or white light spectroscopy probes (moorVMS-OXY) for simultaneous tissue blood flow and superficial tissue oxygenation.

Probe materials selected are biocompatible for safe human use allowing cleaning/ disinfection between patients.

NP1

Standard moorVMS-NIRS probe

Add to quote
